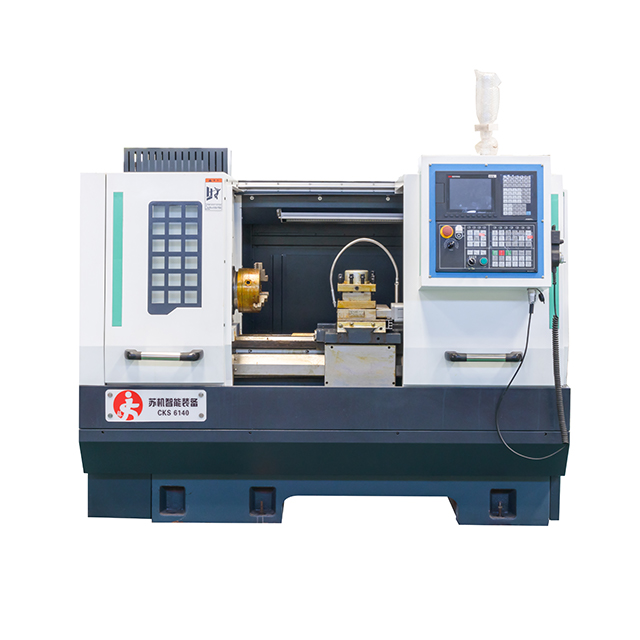

SPECIFICATION/MODEL | CKS-6140 |
CAPACITY
| |
Max.swing over bed | φ400mm |
Max.swing over carriage | φ240 |
Max Cutting length | 750/1000 |
RAIL WIDTH | |
Rail width | 330mm |
SPINDLE | |
Spindle nose | A2-6 |
Spindle bore | φ60mm |
Taper of spindle | MT6 |
Chuck | 8" |
Spindle Speed | 150-2000rpm or 2 gears 60-600/280-2000 rpmm |
FEEDS | |
X-axis travel | 230mm |
Z axis travel | 500/750/1000/1500 |
X/Z Rapid speed | 4/7m/min |
R.P ACCURACY | |
X/Z | X≤0 . 0075mm Z≤0 . 010mm |
CABBIAGE | |
Stations of turret | 4/6/8 |
Max.section of tool | 25x25mm |
TAIL STOCK | |
Stroke of tailstock sleeve | 120mm |
Diameter/Hole of tailstock sleeve | φ55mm/MT4 |
MOTOR | |
Main motor power | 5.5/7.5 KW |
Coolant pump power | 180W |
DIMENSION | |
Overall dimensions L/W/H | 1950/2220/2540/3040×1420×1750mm |
Parking size L/W/H | 2150/2420/2740/3240×1620×2100mm |
WEIGHT | |
Net weight | 1500/1700/1900/2300KGS |
