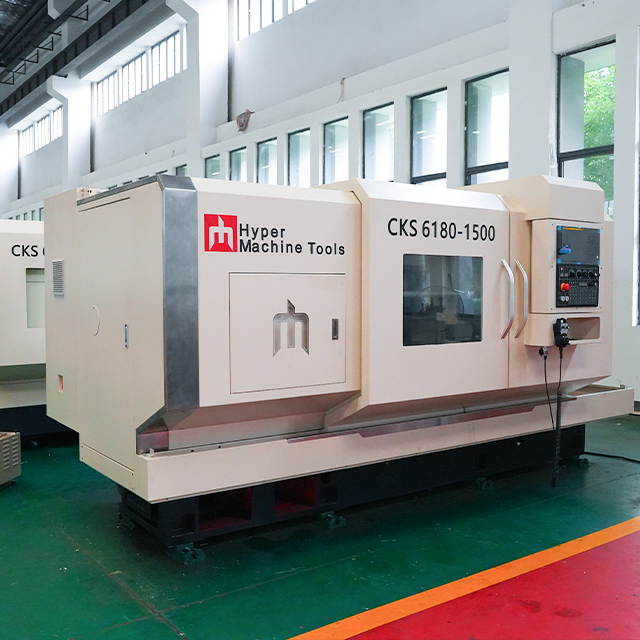

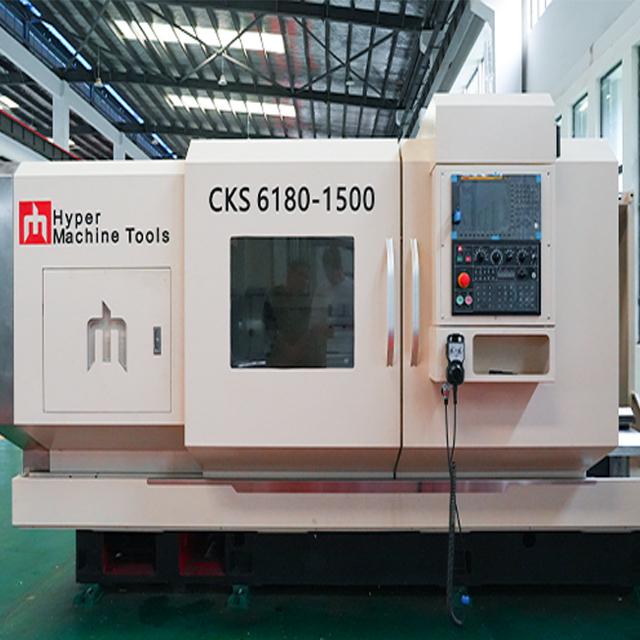

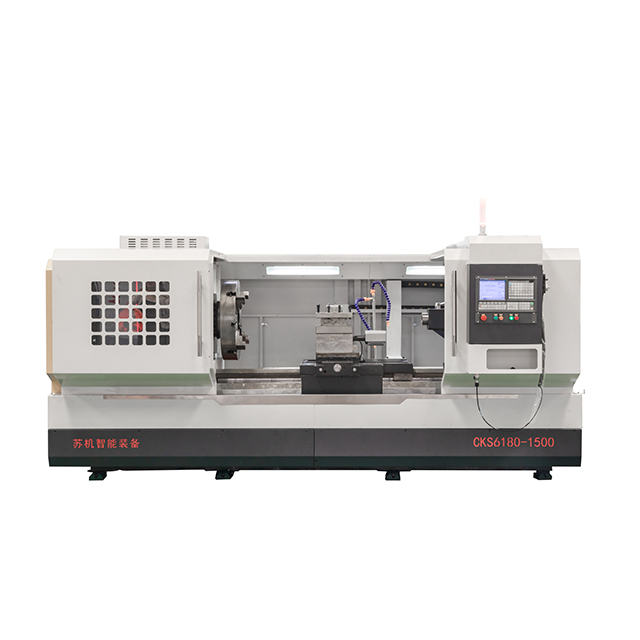

SPECIFICATION/MODEL | CKS-6180 |
CAPACITY | |
Max.swing over bed | φ800mm |
Max.swing over carriage | φ480mm |
Max Cutting length | 1000/1500/2000/3000 |
RAIL WIDTH | |
Rail width | 600mm |
SPINDLE | |
Spindle nose | C-11 |
Spindle bore | φ104mm |
Taper of spindle | Metric 1:20 |
Chuck | φ325mm(Three Claw) |
Spindle Speed | 40-125/110-350/290-950rpm |
FEEDS | |
X-axis travel | 470mm |
Z axis travel | 1200/1650/2200/3200mm |
X/Z Rapid speed | 4/8m/min |
R.P ACCURACY | |
X/Z | X≤0 . 0075mm Z≤0 . 010mm |
CABBIAGE | |
Stations of turret | 4/6/8 |
Max.section of tool | 40x40mm |
TAIL STOCK | |
Stroke of tailstock sleeve | 250mm |
Diameter/Hole of tailstock sleeve | φ100mm/MT5 |
MOTOR | |
Main motor power | 11KW |
Coolant pump power | 180W |
DIMENSION | |
Overall dimensions L/W/H | 2900/3400/3900/4900x1600x1830mm |
Parking size L/W/H | 3300/3800/4300/5300x1900x2100mm |
WEIGHT | |
Net weight | 4000/4500/5000KGS/6500KGS |
