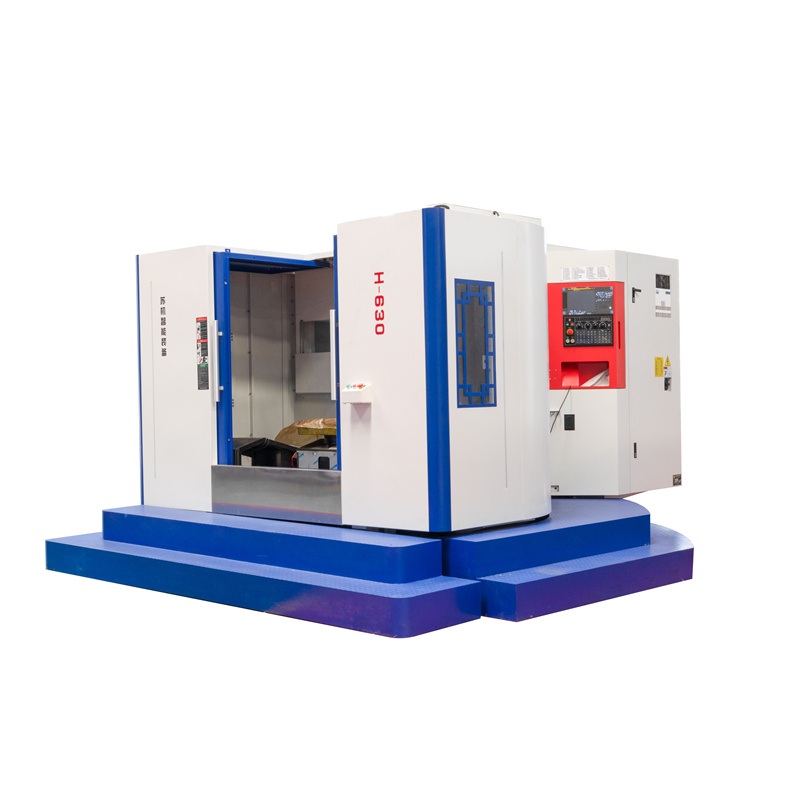

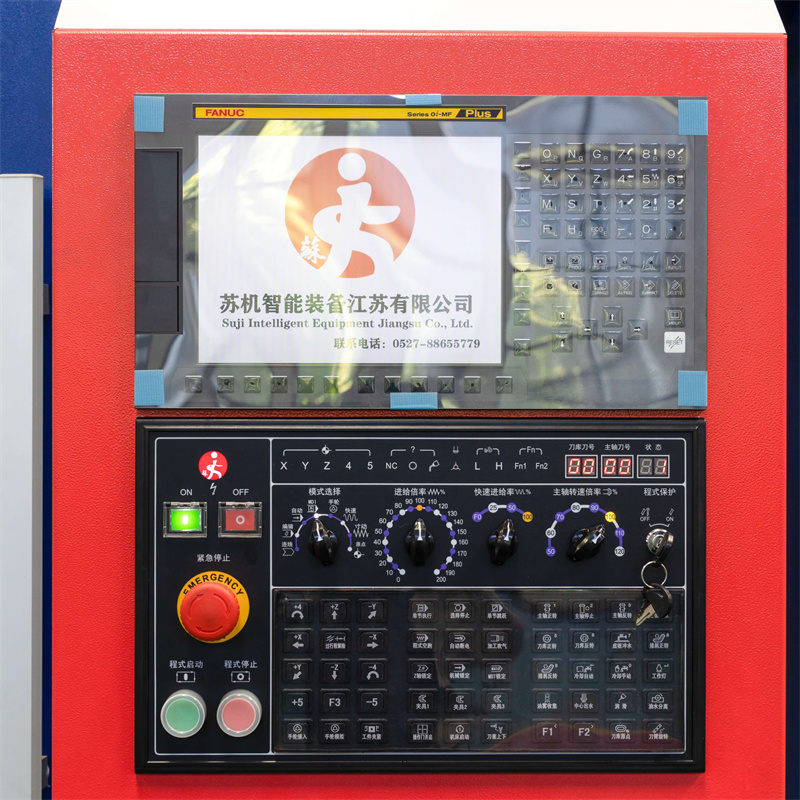

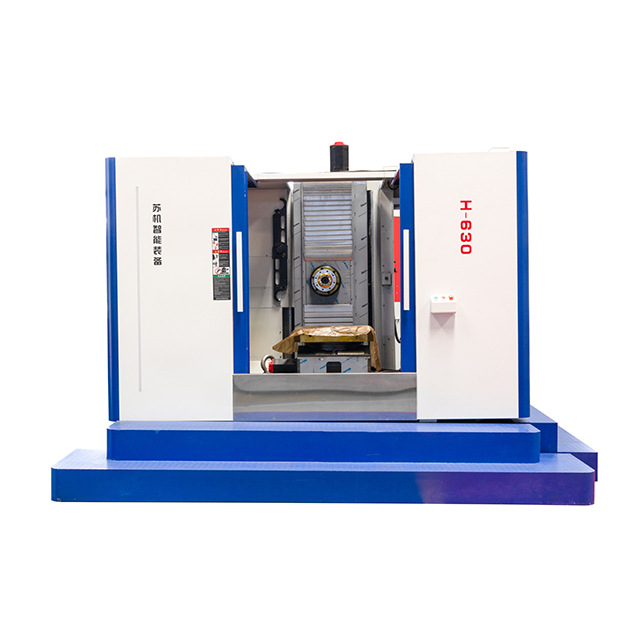

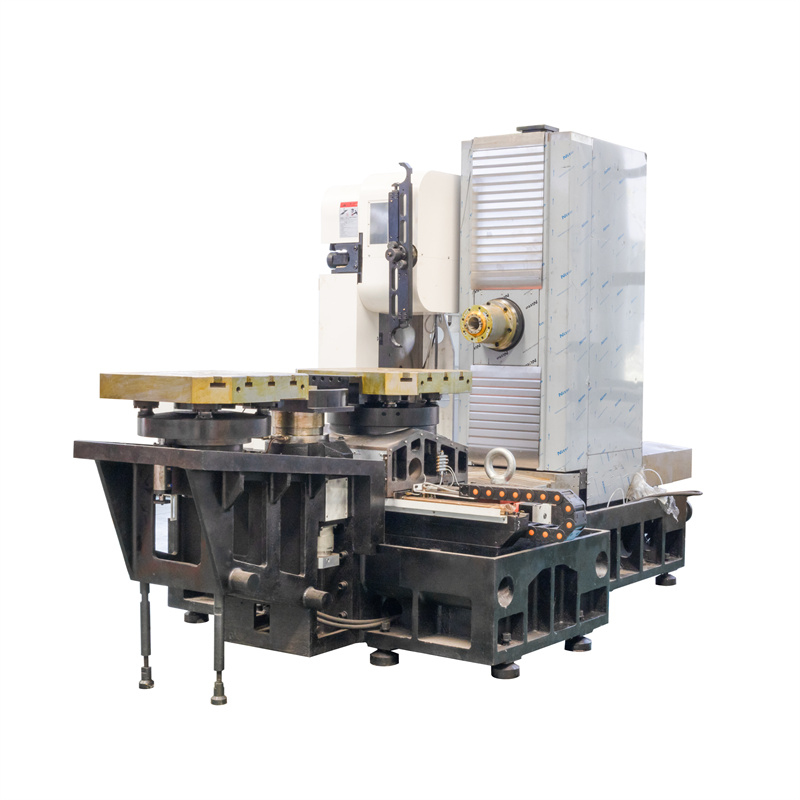

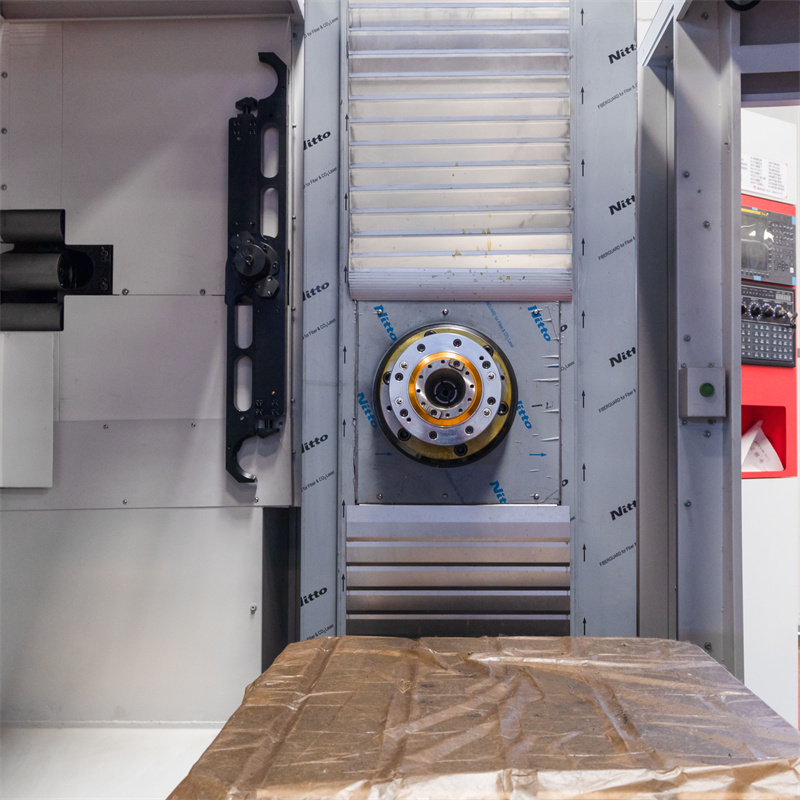

Item/Model | Unit | H500 | H630 | H800 |
WorkBench | ||||
Workbench (L× W) | mm | 600*500 | 630*630 | 800*800 |
Max load | kg | 800 | 1200 | 1500 |
Workbench indexing | Degree | 1 | 1 | 1 |
Number of workbenches | piece | 1 | 1 | 1 |
Max Size workpiece | mm | Ø800×650 | Ø1000×900 | Ø1100x850 |
Travel | ||||
X-axis | mm | 800 | 1050 | 1100 |
Y-axis | mm | 600 | 800 | 850 |
Z-axis | mm | 785 | 900 | 900 |
Spindle center to table face | mm | 50-650 | 80-880 | 100-950 |
Spindle nose to table center | mm | 120-908 | 120-1020 | 180-1080 |
Spindle | ||||
Spindle hole taper | BT40/Φ150 | BT50/Φ190 | BT50/Φ190 | |
Spindle speed range | r/min | 50-8000 | 50-1000 (1:3.5 deceleration), 1000-5000 (1:1.28 deceleration) | 0-6000 |
Spindle output torque Max | Nm | 116 | 408 | 236 |
Speed | ||||
X/Y/Z axis fast movement | m/min | 24 | 24 | 24 |
4-axis rapid movement | r/min | 10 | 10 | 10 |
feed rate | mm/min | 10000 | 10000 | 10000 |
Outline | ||||
Dimensions | mm | 3000*4200*3500 | 3000*4200*3500 | 4500*3500*3500 |
Weight | kg | 8000 | 9500 | 11000 |
Protective cover | Fully enclosed | Fully enclosed | Fully enclosed | |
Accuracy | ||||
X/Y/Z positioning accuracy | mm | ±0.005/500 | ±0.005/500 | ±0.005/300 |
X/Y/Z repeated positioning accuracy | mm | ±0.003/500 | ±0.003/500 | ±0.003/300 |
B-axis positioning accuracy | sec | ±6 | ±6 | 12 |
B-axis repeated positioning accuracy | sec | ±2 | ±2 | 6 |
