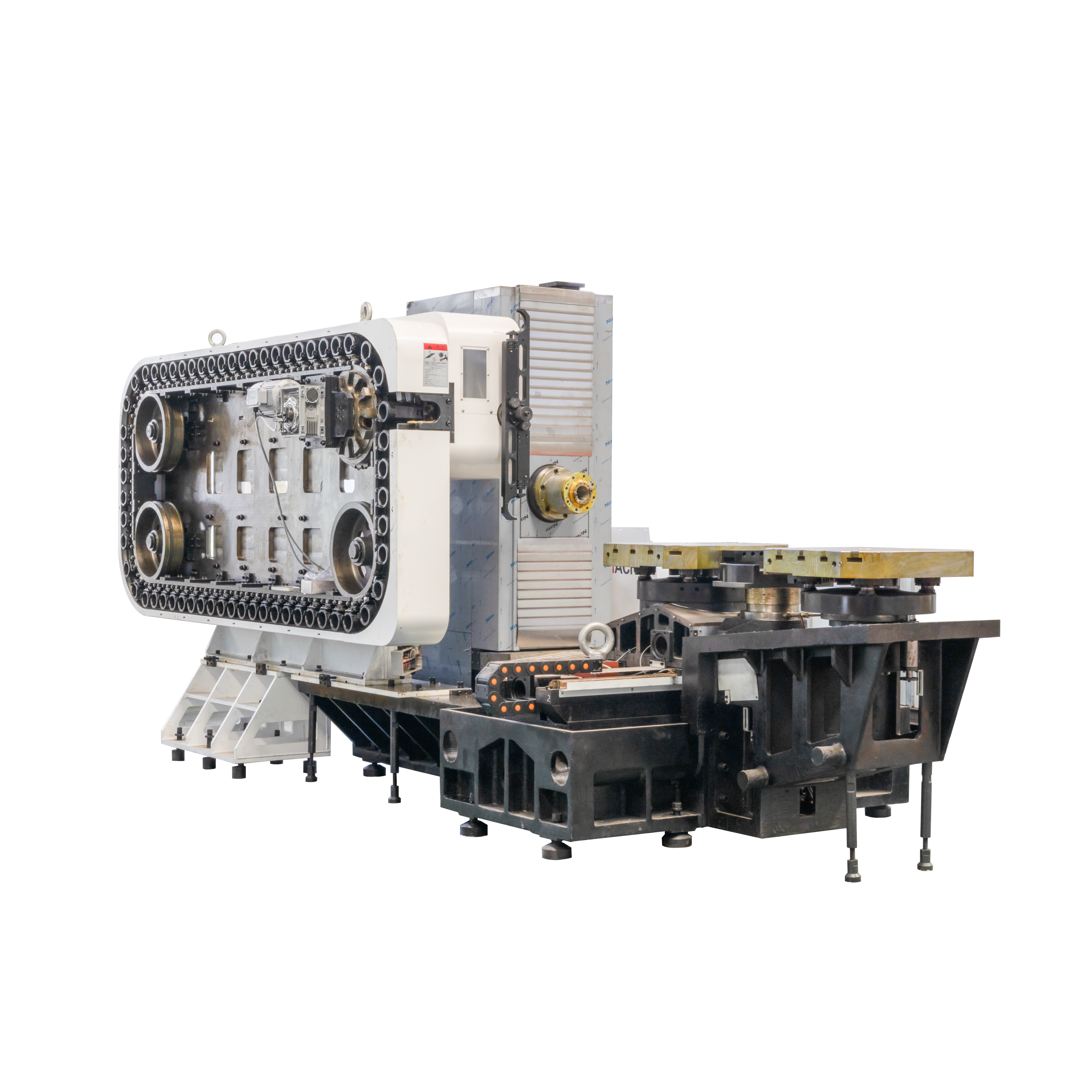

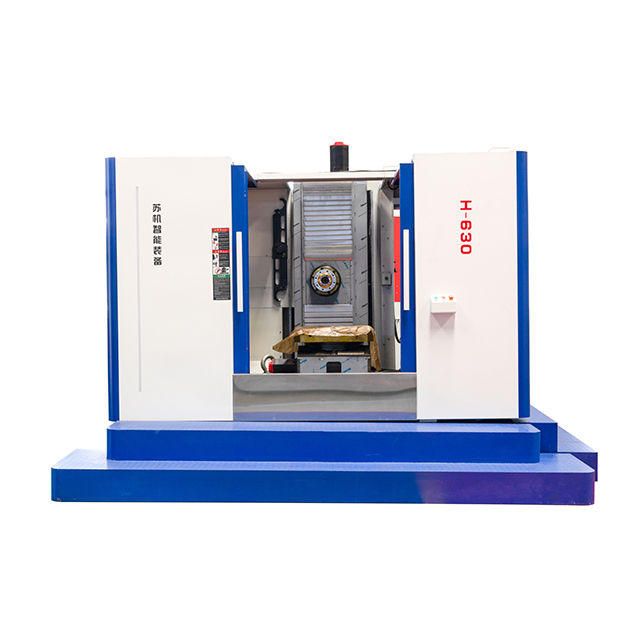

H800

WorkBench

Workbench (L× W)

mm

600*500

630*630

800*800

Max load

kg

800

1200

1500

Workbench indexing

Degree

1

1

1

Number of workbenches

piece

1

1

1

Max Size workpiece

mm

Ø800×650

Ø1000×900

Ø1100x850

Travel

X-axis

mm

800

1050

1100

Y-axis

mm

600

800

850

Z-axis

mm

785

900

900

Spindle center to table face

mm

50-650

80-880

100-950

Spindle nose to table center

mm

120-908

120-1020

180-1080

Spindle

Spindle hole taper

BT40/Φ150

BT50/Φ190

BT50/Φ190

Spindle speed range

r/min

50-8000

50-1000 (1:3.5 deceleration),

1000-5000 (1:1.28 deceleration)

0-6000

Spindle output torque Max

Nm

116

408

236

Speed

X/Y/Z axis fast movement

m/min

24

24

24

4-axis rapid movement

r/min

10

10

10

feed rate

mm/min

10000

10000

10000

Outline

Dimensions

mm

3000*4200*3500

3000*4200*3500

4500*3500*3500

Weight

kg

8000

9500

11000

Protective cover

Fully enclosed

Fully enclosed

Fully enclosed

Accuracy

X/Y/Z positioning accuracy

mm

±0.005/500

±0.005/500

±0.005/300

X/Y/Z repeated positioning accuracy

mm

±0.003/500

±0.003/500

±0.003/300

B-axis positioning accuracy

sec

±6

±6

12

B-axis repeated positioning accuracy

sec

±2

±2

6
