SJH-2519

Availability:
Quantity:

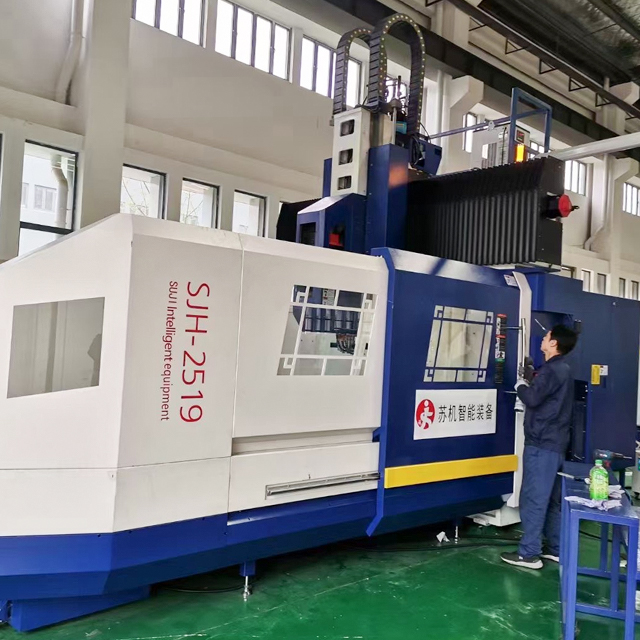

SJH-2519 gantry machining center is a cost-effective CNC machining machine tool equipped with a Japanese Mitsubishi CNC system. It can realize drilling, reaming, countersinking, tapping, milling, boring and other processing. It is suitable for processing parts with high precision and productivity requirements. It can completely eliminate the need for certain special fixtures and marking processes, which greatly improves the efficiency of the process. Reduce the labor intensity of workers. This machine tool is suitable for drilling and drilling of small and medium-sized plates, plates, shells, valve bodies, cams and other parts with high hole spacing accuracy in industries such as automobiles, motorcycles, aerospace, military, instruments, meters, electronics, molds, etc. The processing of milling, boring, tapping, etc. is programmed and the production cycle is shortened.

SJH-2519 machine tool is equipped with full protection, which effectively prevents cutting fluid and chips from splashing around, and has a beautiful and generous appearance. It is equipped with a complete set of spindles produced by a well-known professional company in Taiwan, with good performance, strong broaching force and service life; optional CNC turntable It can form four-axis coordinate linkage processing; it can optionally be equipped with a spindle oil cooler; it can be optionally equipped with an automatic chip removal device, which can be matched with the bed structure to ensure internal cleanliness.


No.

Project

Unit

Data

1

Workbench area (length × width)

mm

2500*1500

2

T-slot

mm

22-9

3

T-slot spacing

mm

160

4

Maximum load-bearing capacity of workbench

kg

10000

Tourney

5

Left and right travel (X axis)

mm

2600

6

Front and rear travel (Y axis)

mm

1900

7

Up and down travel (Z axis)

mm

900

8

Gantry width

mm

1900

9

Distance from spindle end face to worktable

mm

150-1050

Spindle head

10

Spindle bore taper

BT50/Φ155

11

Spindle speed range

r/min

0-8000

12

Servo main motor rated power

kw

15

13

Servo spindle motor maximum power for 30 minutes

kw

18.5

14

Maximum torque of servo spindle motor in 30 minutes

Nm

191

15

Spindle and motor transmission method

Belt drive

16

Spindle accuracy

Spindle end face runout: 0.003mm

Spindle radial runout: 0.003mm at proximal end

Knife handle specifications

17

Shank standard

MAS403 BT50

18

Rivet standard

MAS403 P40T-1(45º)

Feed

19

Y/Z axis feed motor maximum speed

r/min

2000

20

Y/Z axis feed motor rated power

kw

3

21

Y/Z axis feed motor maximum torque

Nm

90

22

Z-axis feed motor maximum speed

r/min

2000

23

X feed motor rated power

kw

3

24

X feed motor maximum torque

Nm

90

25

X/Y axis rapid movement

m/min

12/12

26

Z-axis rapid movement

m/min

10

27

cutting feed rate

mm/min

0-8000

Knife library

28

Tool magazine type

Disc type

29

Magazine capacity

Bundle

24

30

Full knife maximum tool diameter

mm

Ф115

31

Maximum tool diameter of adjacent space tool

mm

Ф228

32

The maximum allowable weight of the tool

kg

18

33

The maximum allowable length of the tool

mm

300

34

Tool-to-tool exchange time

s

2.9

35

Knife selection method

Forward and reverse, choose the nearest knife

Power source

36

Machine electrical total capacity

KVA

40

37

Cooling pump flow

L/min

40(Head 18m)

38

Compressed air for machine tools

Kgf/cm2

6~8

39

Power requirements

380V±10% 50Hz

Environmental requirements

40

Ambient temperature requirements

0℃~40℃

41

Relative humidity

20%~80%

Machine tool size

42

Machine tool dimensions

m

6.3*3.5*4.5

43

Machine weight

t

20

44

Machine guard


fully enclosed

Accuracy

45

X/Y/Z positioning accuracy

mm

±0.005/300

46

X/Y/Z Repeatability

mm

±0.003/300

Other

47

Guide rail type X/Y/Z

X/Y roller linear track Z hard track

48

Chip removal method

Double spiral chip removal + chain plate chip removal

49

Cleaning method

manual airsoft

50

Spindle protection/cooling method

Water spraying and processing air blowing


Main technical characteristics of machine tool design

3.1. The main parts of the machine tool such as the bed, gantry, bed saddle, worktable and spindle box are all made of high-quality gray cast iron with high shock resistance. They are produced by professional enterprises that have passed the ISO9000 quality system certification. The casting process adopts special processes to improve the mechanical properties of the materials. performance. Castings are aged twice to eliminate residual stresses within the material. Therefore, when the machine tool is used for heavy or intermittent cutting, it has excellent rigidity and excellent shock absorption; at the same time, it has good thermal stability and long-lasting precision stability. The design of the machine tool adopts two-axis rolling guide and one-axis sliding guide rail, so that the machine tool not only takes into account the characteristics of high speed and high precision, but also has the characteristics of heavy cutting, with excellent rigidity and production efficiency, and cooperates with automatic forced lubrication to improve the accuracy and life of the machine tool and rigidity.

3.2. The structure of all key parts of the machine tool is designed with advanced three-dimensional software, and the optimal structure of the parts is determined by advanced computer finite element analysis. The bed, gantry, bed saddle and other parts are designed with large cross-sectional dimensions, and the guide rail adopts large span Dimensional design, gantry ultra-wide structure design, so that the machine tool has excellent strength, rigidity and thermal stability.

3.3. The main joint surfaces of the machine tool assembly are finely scraped manually to ensure the effective contact area of the joint surfaces.

3.4. The main shaft adopts the precision main shaft unit produced by Taiwan professional manufacturer, and the main shaft bearing adopts the high-precision angular contact thrust ball bearing of the world famous brand to ensure the high precision and rigidity of the main shaft. Both the main shaft and the motor pulley have passed the dynamic balance test to ensure the accuracy and life of the main shaft. The front end cover of the spindle adopts the air curtain protection function to prevent the intrusion of air dust and cutting fluid.

3.5. The feed component of the machine tool adopts imported high-precision ball screw, and the supporting bearings at both ends use imported screw special bearings, and the ball screw is pre-stretched; the screw-motor connection adopts a gapless elastic coupling , The transmission has no backlash, the moment of inertia is small, and the transmission rigidity is high. The guide rail of the machine tool adopts Taiwan roller linear guide. Both the screw and the guide rail are equipped with a centralized automatic lubrication device, which automatically supplies oil to the screw and guide rail at regular intervals, so that the machine tool is fully lubricated during the movement, thereby ensuring that the machine tool has excellent fast response characteristics and low-speed feed performance. Longer life and better accuracy retention.

3.6. The wiring of the electrical cabinet of the machine tool is neat and the structure is reasonable. The electric cabinet is equipped with a heat exchanger.

3.7. The numerical control system is the Japanese FANUC 0i-MF PLUS numerical control system.

3.8. The servo motor is a bus absolute value motor, without a limit/zero return switch, and without returning to zero every time it is turned on.

3.9. The lubrication system adopts a volumetric distributor, which has a higher pressure than the traditional distributor, and realizes regular and quantitative filling of lubricating oil.

3.10. A protective cover is added around the workbench to prevent chips from flying into the saddle to the greatest extent.
