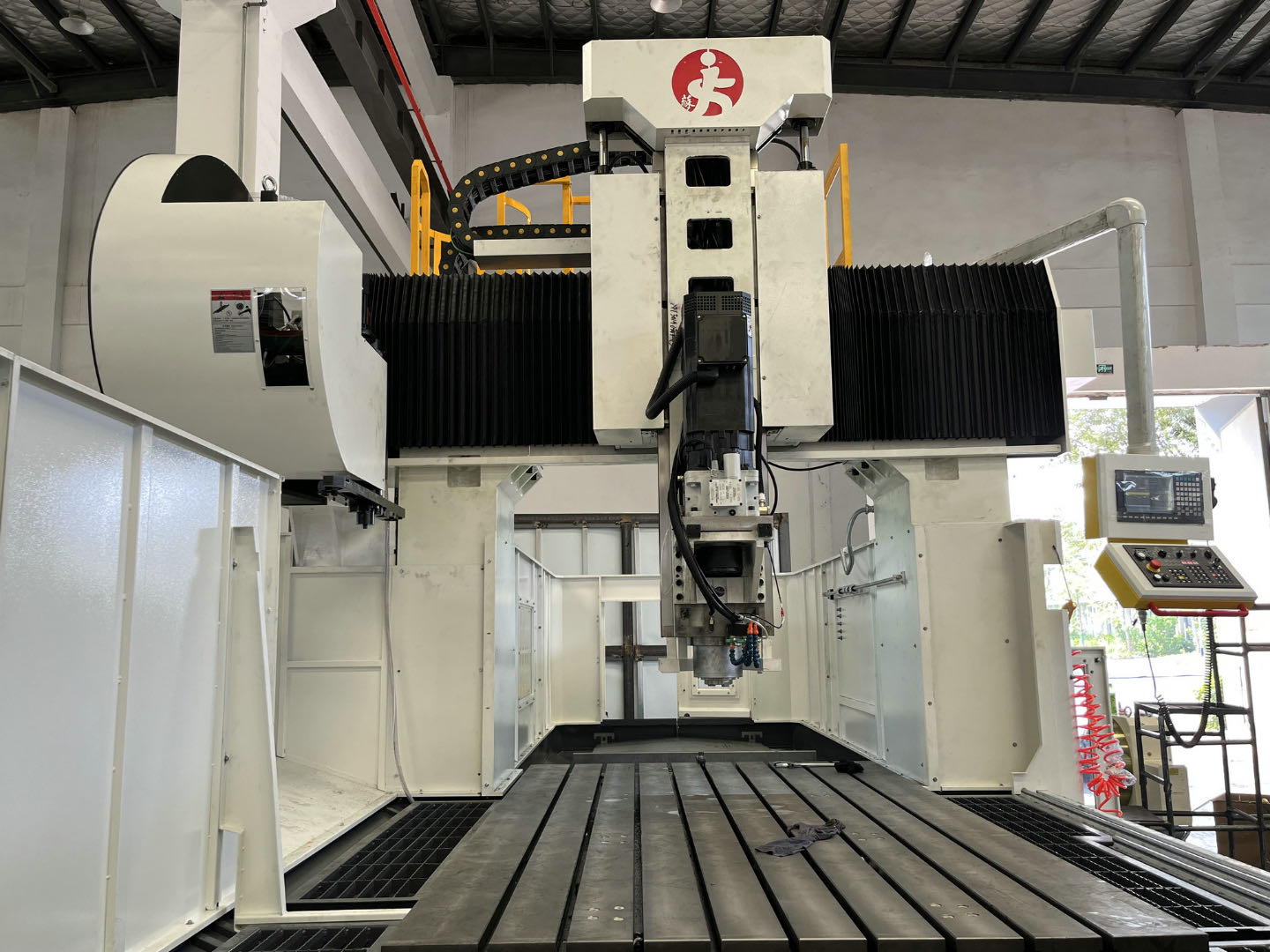

SJH5027(X-5000)

Availability:
Quantity:

ONE-PIECE STRUCTURE

The one piece structure integrates beams and columns, effectively improving the iron cutting ability of structural rigidity.

 The main castings of machinery are effectively eliminated through time-lapse vibration monitoring, which enhances the stability and positioning accuracy of the machine tool.


TAIWAN BRAND COMPONENTS

All components are imported from Taiwan with original components;

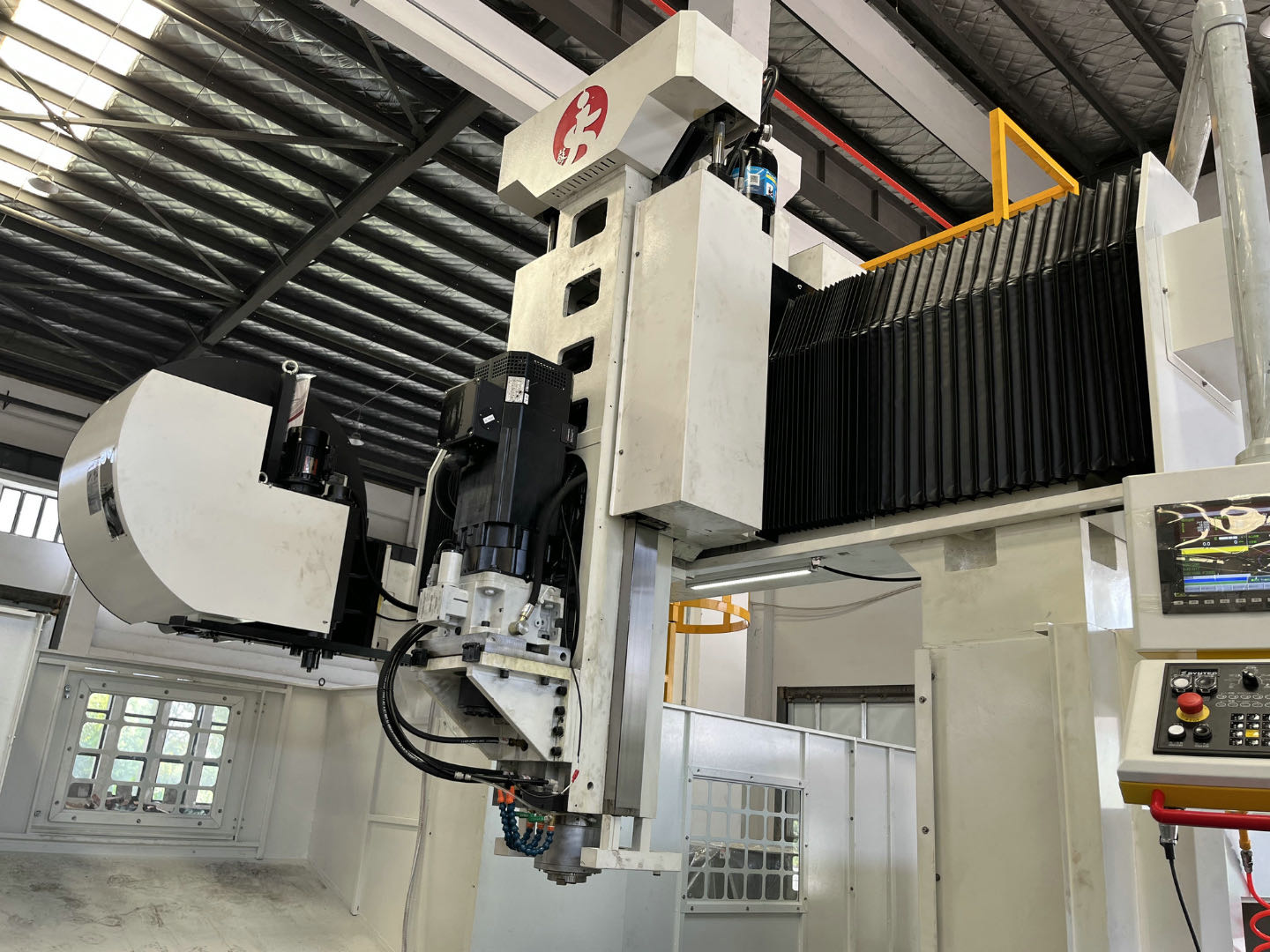

90 DEGREE RIGHT ANGLE MILLING HEAD AND A UNIVERSAL MILLING HEAD

can complete a complex process of clamping and multi face machining in one operaion


Grantry/Model

Unit

SJH5027

Machining Range



X axis travel

mm

5000

Y axis travel

mm

2700

Z axis travel

mm

1000

Grantry Width

mm

2700

Workbench size



Table Dimension

mm

5000x2300

Max. Load

kg

20000

T-slot  Dimension

mm

11-28x200

Spindle nose to table

mm

260x1260

Spindle



Taper


BT50

Max Speed

rpm

6000

Driving Mode


belt

Spindle Motor Fanuc S11/S3

Kw

22/66

3 Axis



3 Phase Motor Fanuc X.Y.Z.

Kw

9.0/6.0/6.0

Guide rail

mm

3x55/55/hard

screww rod

mm

80x20/63x16/50x10

fast movement

m/min-1

8/10/10

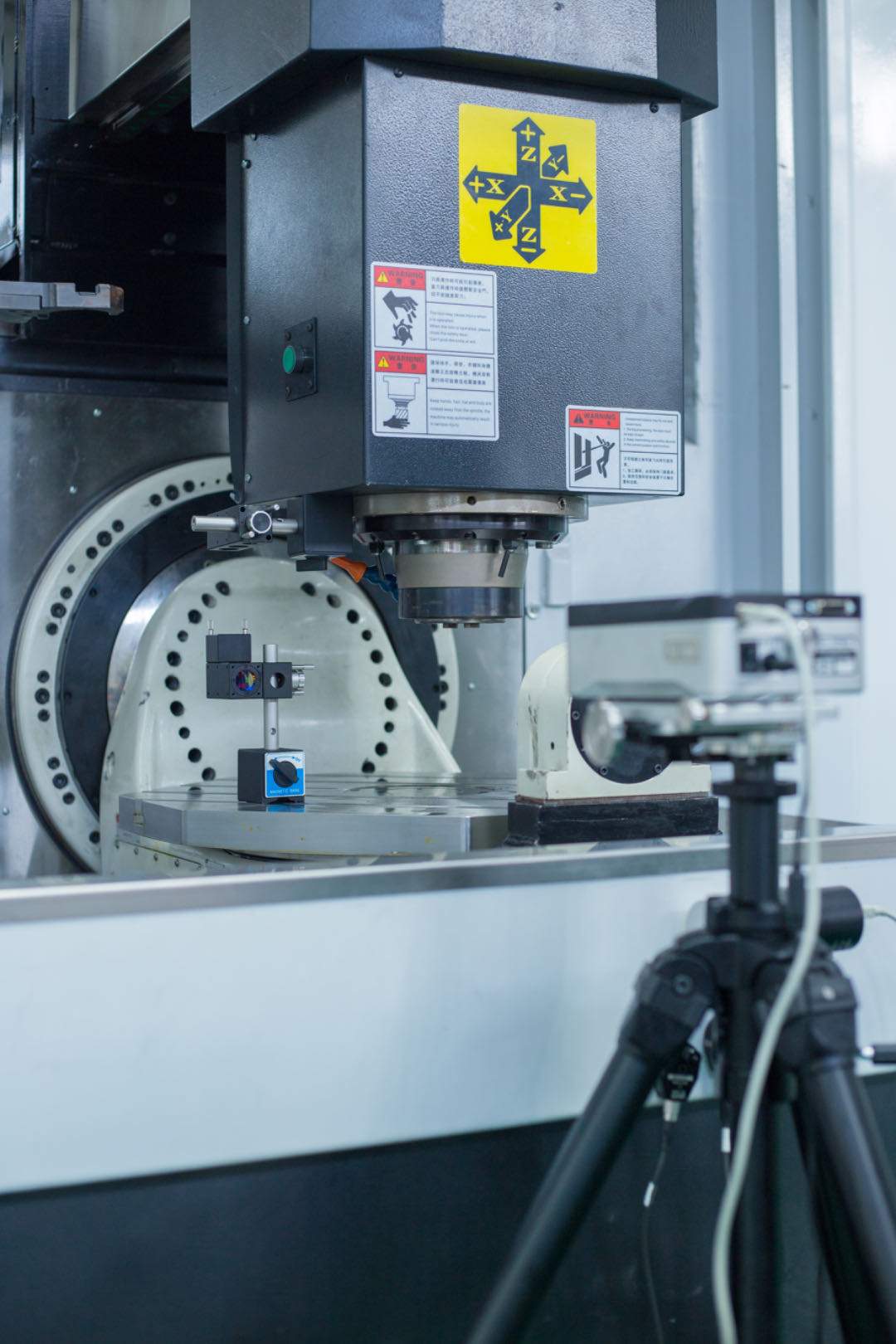

Accuracy



Positioning Acurracy

mm

±0.005/300

Repeated Positioning Acurracy

mm

±0.003/300

Other



Weight

t

56

Air Demand

kaf/cm²

6


mm


Power Demand

kva

55

Ourline Dimension

mm

1250x5400x5000
