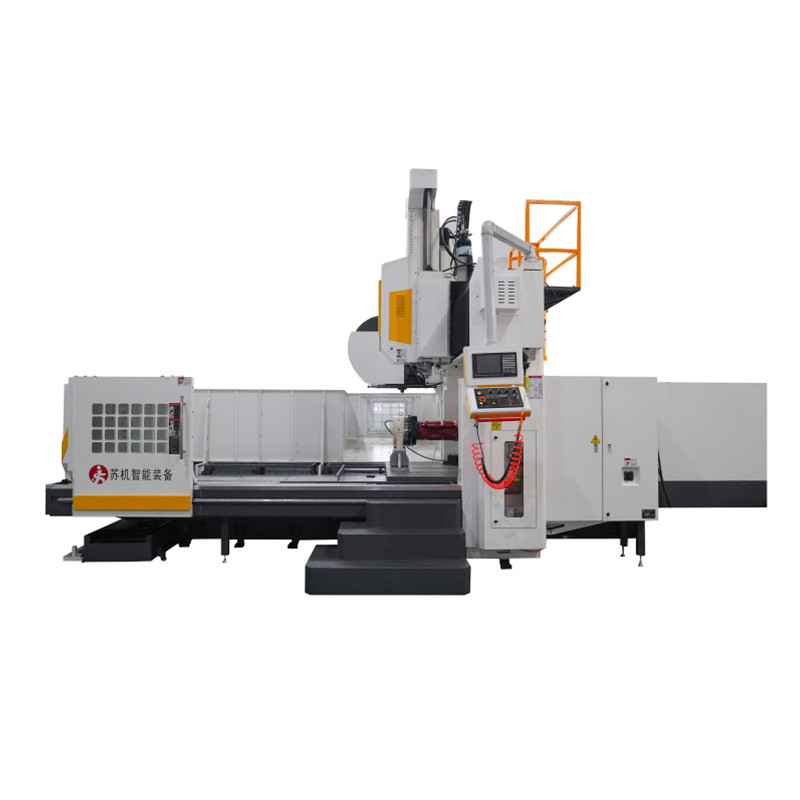

ONE-PIECE STRUCTURE
The one piece structure integrates beams and columns, effectively improving the iron cutting ability of structural rigidity.
The main castings of machinery are effectively eliminated through time-lapse vibration monitoring, which enhances the stability and positioning accuracy of the machine tool.
TAIWAN BRAND COMPONENTS
All components are imported from Taiwan with original components;
90 DEGREE RIGHT ANGLE MILLING HEAD AND A UNIVERSAL MILLING HEAD
can complete a complex process of clamping and multi face machining in one operaion
ONE-PIECE STRUCTURE
The one piece structure integrates beams and columns, effectively improving the iron cutting ability of structural rigidity.
The main castings of machinery are effectively eliminated through time-lapse vibration monitoring, which enhances the stability and positioning accuracy of the machine tool.
TAIWAN BRAND COMPONENTS
All components are imported from Taiwan with original components;
90 DEGREE RIGHT ANGLE MILLING HEAD AND A UNIVERSAL MILLING HEAD
can complete a complex process of clamping and multi face machining in one operaion
Grantry/Model | Unit | SJH6027 |
Machining Range | ||
X axis travel | mm | 6000 |
Y axis travel | mm | 2700 |
Z axis travel | mm | 1000 |
Grantry Width | mm | 2700 |
Workbench size | ||
Table Dimension | mm | 6000x2300 |
Max. Load | kg | 18000 |
T-slot Dimension | mm | 11-28x200 |
Spindle nose to table | mm | 260x1260 |
Spindle | ||
Taper | BT50 | |
Max Speed | rpm | 6000 |
Driving Mode | belt | |
Spindle Motor Fanuc S11/S3 | Kw | 22/66 |
3 Axis | ||
3 Phase Motor Fanuc X.Y.Z. | Kw | 9.0/6.0/6.0 |
Guide rail | mm | 3x55/55/hard |
screww rod | mm | 100x20/63x16/50x10 |
fast movement | m/min-1 | 8/10/10 |
Accuracy | ||
Positioning Acurracy | mm | ±0.005/300 |
Repeated Positioning Acurracy | mm | ±0.003/300 |
Other | ||
Weight | t | 68 |
Air Demand | kaf/cm² | 6 |
mm | ||
Power Demand | kva | 60 |
Ourline Dimension | mm | 14750x5400x5000 |
Grantry/Model | Unit | SJH6027 |
Machining Range | ||
X axis travel | mm | 6000 |
Y axis travel | mm | 2700 |
Z axis travel | mm | 1000 |
Grantry Width | mm | 2700 |
Workbench size | ||
Table Dimension | mm | 6000x2300 |
Max. Load | kg | 18000 |
T-slot Dimension | mm | 11-28x200 |
Spindle nose to table | mm | 260x1260 |
Spindle | ||
Taper | BT50 | |
Max Speed | rpm | 6000 |
Driving Mode | belt | |
Spindle Motor Fanuc S11/S3 | Kw | 22/66 |
3 Axis | ||
3 Phase Motor Fanuc X.Y.Z. | Kw | 9.0/6.0/6.0 |
Guide rail | mm | 3x55/55/hard |
screww rod | mm | 100x20/63x16/50x10 |
fast movement | m/min-1 | 8/10/10 |
Accuracy | ||
Positioning Acurracy | mm | ±0.005/300 |
Repeated Positioning Acurracy | mm | ±0.003/300 |
Other | ||
Weight | t | 68 |
Air Demand | kaf/cm² | 6 |
mm | ||
Power Demand | kva | 60 |
Ourline Dimension | mm | 14750x5400x5000 |
