Our S-series machine tool adopts a three-axis linear guide rail, with high-speed displacement, high-speed spindle, and the use of ATC automatic tool changing mechanism.
The three-axis adopts high-precision ball screw, which can meet the requirements of high-speed and high-precision.
Focusing on production: Providing the best choice for automotive components, electronic communication components, aerospace components, and precision mold manufacturing enterprises ect.
Our S-series machine tool adopts a three-axis linear guide rail, with high-speed displacement, high-speed spindle, and the use of ATC automatic tool changing mechanism.
The three-axis adopts high-precision ball screw, which can meet the requirements of high-speed and high-precision.
Focusing on production: Providing the best choice for automotive components, electronic communication components, aerospace components, and precision mold manufacturing enterprises ect.

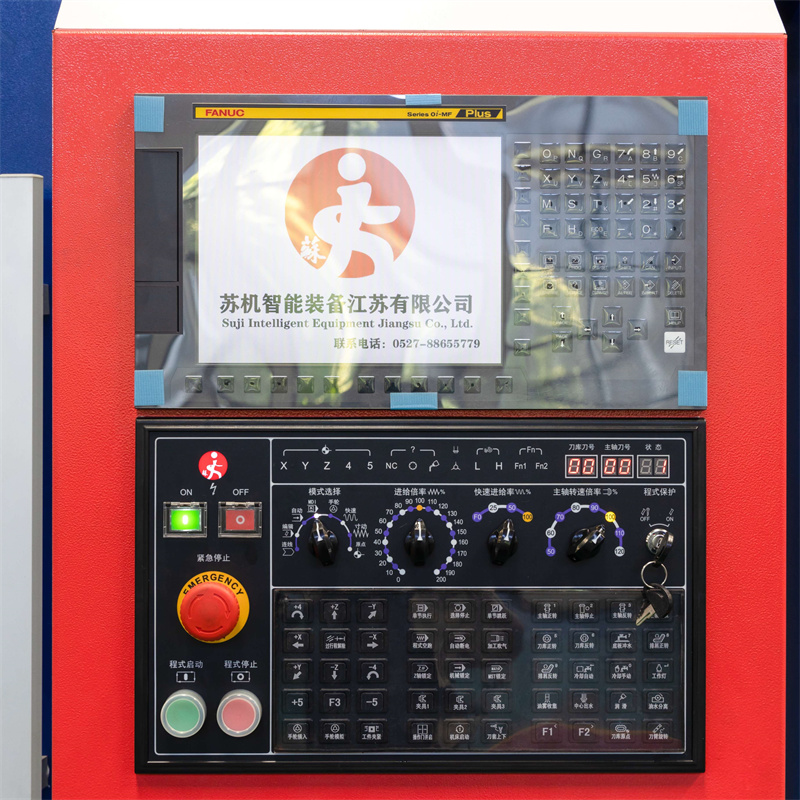

1. Controller: Fanuc
2. XYZ axes AC servo Motor
3. XYZ axes ball screw
4. Z-axis brake Motor
5. Auto lubrication system
6. Coolant system
7. Air draw bar

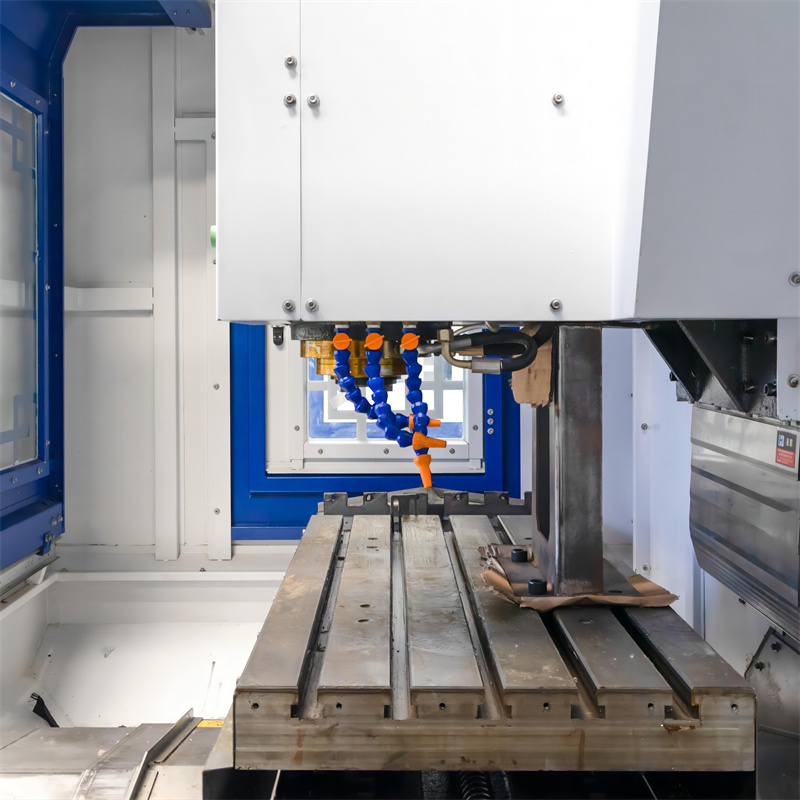

8. Semi table guard
9. Splash guard
10. Halogen light
11. Tools & tool box
12. Operation manual
1. Controller: Fanuc
2. XYZ axes AC servo Motor
3. XYZ axes ball screw
4. Z-axis brake Motor
5. Auto lubrication system
6. Coolant system
7. Air draw bar
8. Semi table guard
9. Splash guard
10. Halogen light
11. Tools & tool box
12. Operation manual
1. Controller: POU YUEN
2. Transformer
3. 4th axis
4. 3 axes liner scale
1. Controller: POU YUEN
2. Transformer
3. 4th axis
4. 3 axes liner scale

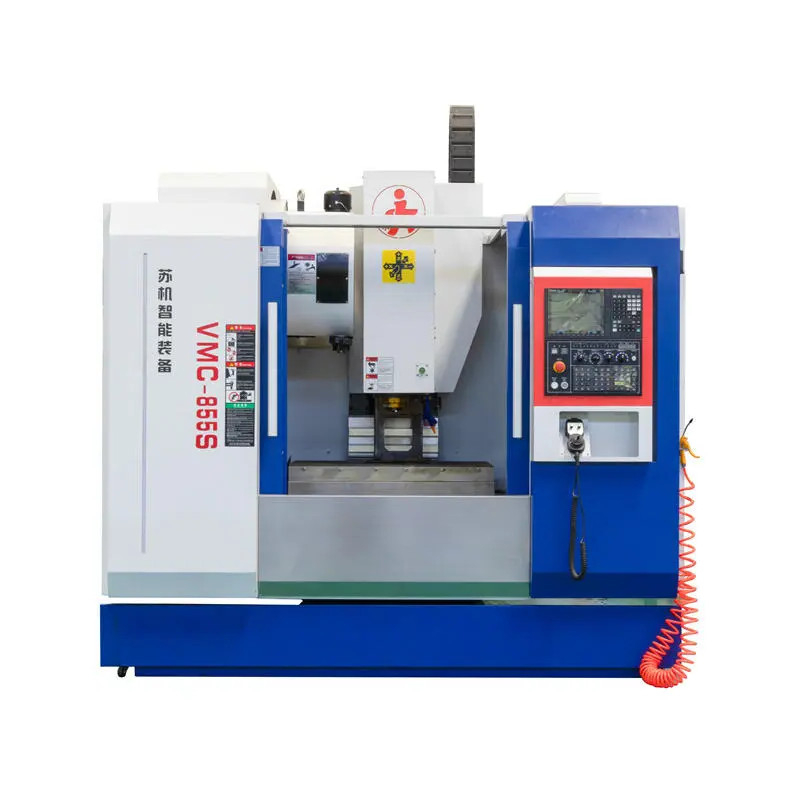

VMC-S Series
S/Model | Unit | VMC855S |
Machining Range | ||
X axis travel | mm | 800 |
Y axis travel | mm | 550 |
Z axis travel | mm | 550 |
Spindle nose to table | mm | 120-670 |
Spindle center to column | mm | 595 |
Workbench size | ||
Table Dimension | mm | 1000x550 |
T-slot Dimension | mm | 5X18X90 |
Max Load | kg | 500 |
Spindle | ||
Taper | BT40 | |
Max Speed | rpm | Direct 12000 |
Infeed System | ||
G00 fast infeed(Axis X/Y/Z) | m/min | 48/48/48 |
G01 cutting infeed | m/min | 1-10000 |

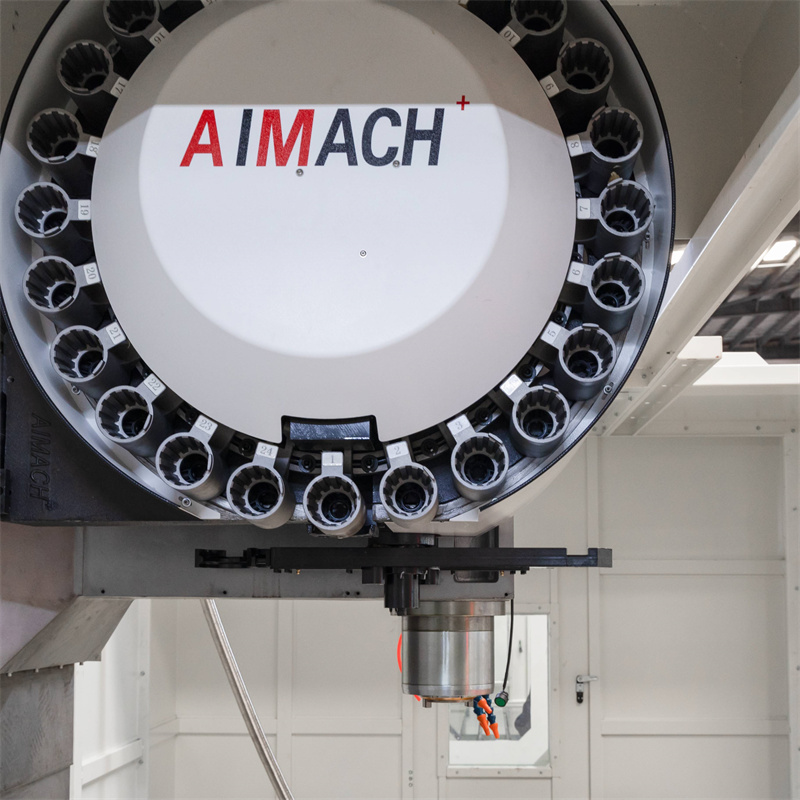

Tool Magazine | ||
Type | type | Disc |
Capacity | unit | 24 |
Machine Dimension | ||
Length | mm | 2500 |
Width | mm | 2000 |
Height | mm | 2200 |
Weight | kgs | 4800 |
* We reserve the right to modify & improve our products without notice.
VMC-S Series
S/Model | Unit | VMC855S |
Machining Range | ||
X axis travel | mm | 800 |
Y axis travel | mm | 550 |
Z axis travel | mm | 550 |
Spindle nose to table | mm | 120-670 |
Spindle center to column | mm | 595 |
Workbench size | ||
Table Dimension | mm | 1000x550 |
T-slot Dimension | mm | 5X18X90 |
Max Load | kg | 500 |
Spindle | ||
Taper | BT40 | |
Max Speed | rpm | Direct 12000 |
Infeed System | ||
G00 fast infeed(Axis X/Y/Z) | m/min | 48/48/48 |
G01 cutting infeed | m/min | 1-10000 |
Tool Magazine | ||
Type | type | Disc |
Capacity | unit | 24 |
Machine Dimension | ||
Length | mm | 2500 |
Width | mm | 2000 |
Height | mm | 2200 |
Weight | kgs | 4800 |
* We reserve the right to modify & improve our products without notice.
