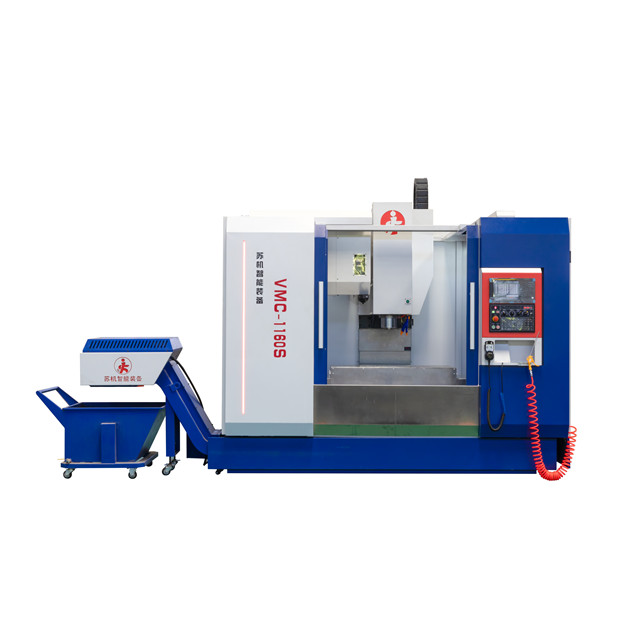

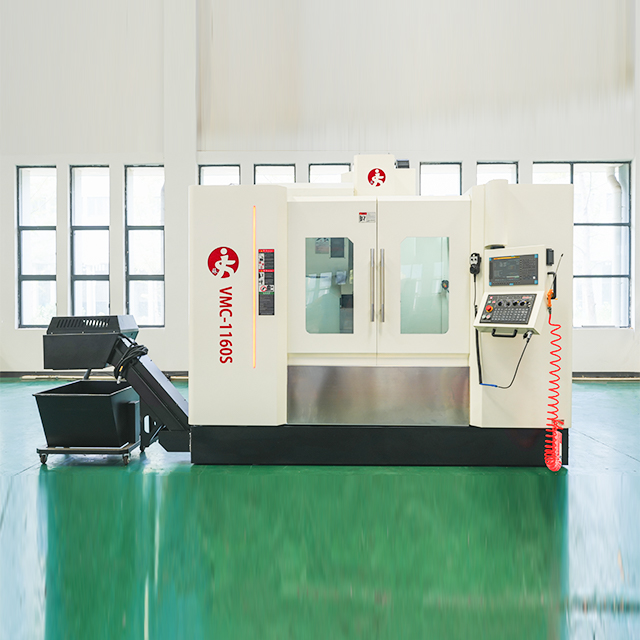

S/Model | Unit | VMC1160S |
Machining Range | ||
X axis travel | mm | 1100 |
Y axis travel | mm | 600 |
Z axis travel | mm | 600 |
Spindle nose to table | mm | 120-720 |
Spindle center to column | mm | 645 |
Workbench size | ||
Table Dimension | mm | 1200x600 |
T-slot Dimension | mm | 5x18x100 |
Max Load | kg | 800 |
Spindle | ||
Taper | BT40 | |
Max Speed | rpm | 8000-1000rpm |
Infeed System | ||
G00 fast infeed（Axis X/Y/Z） | m/min | 36/36/36 |
G01 cutting infeed | m/min | 1-10000 |
Tool Magazine | ||
Type | type | Disc |
Capacity | unit | 24 |
Machine Dimension | ||
Length | mm | 3200 |
| Width | mm | 2400 |
| Height | mm | 2800 |
Weight | kgs | 7500 |
