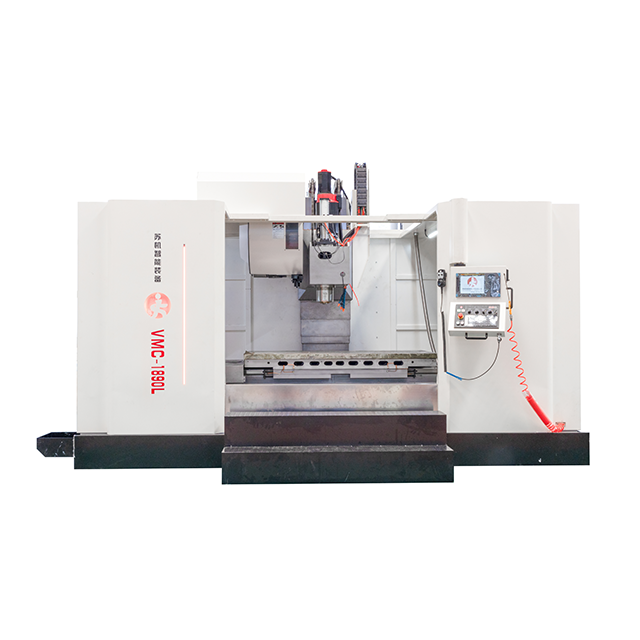

Specification/Model | Unit | VMC1890L |
Processing Range | ||
X-axis travel of workbench | mm | 1800 |
Y-axis travel of workbench | mm | 900 |
Z-axis travel of workbench | mm | 600 |
Spindle nose to workbench | mm | 160-760 |
Spindle center to column | mm | 950 |
Workbench | ||
Table Size | mm | 2000x900 |
Max Load | kgs | 1600 |
Tslot(widthxnumsxdistance) | mm | 22x5x165 |
Axis feed | ||
XYZ axis rapid feed | m/min | 20x20x15 |
G01 cutting feed | mra/min | 1-10000 |
Tool Magazine System | ||
Magazine capacity | pcs | Arm type 24 |
Form of tool magazine | Disk type | |
Tool magazine type | Mechanical/Servo | |
Spindle | ||
Spindle speed | r.p.m | 8000 |
Spindle specifications | BT50/φ190 | |
| Spindle motor | kw | 25HP(18.5) |
General | ||
Positioning accuracy | ±0.005/300 | |
Repetitive accuracy | ±0.005/300 | |
Mechanical footprint size | mm | 3550X3400X3100 |
Weight | kgs | 14000 |
