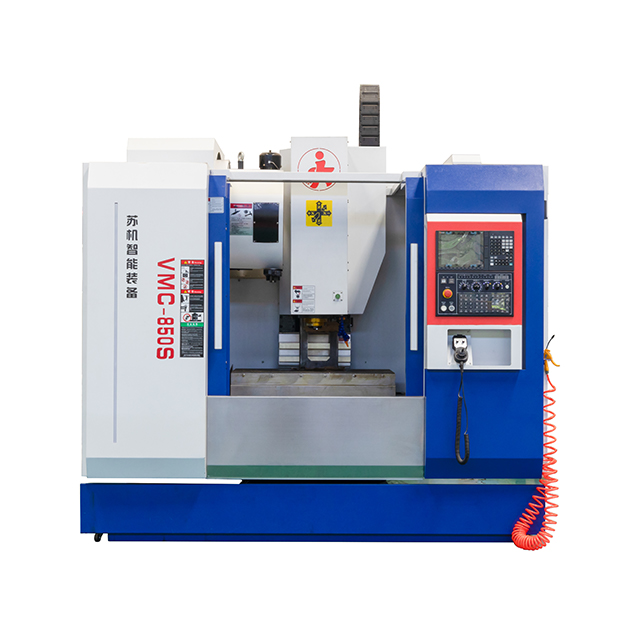

VERTICAL MILLING CENTER VMC-S- SERIES
HIGH SPEED, HIGH EFFICIENCY, NO COUNTERWEIGHT BEST CHOICE FOR MASS PRODUCTION
Our Vmc-S series machine, using three-axis straight guide rail, with high speed displacement, high speed spindle, and using ATC automatic knife changing mechanism.
The three-axis adopts high precision ball wire rod, which can meet the requirements of high speed and high precision.

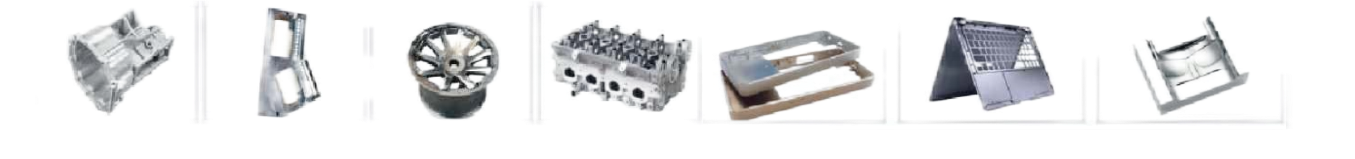

Focus on production: auto parts, electronic communication parts, aerospace parts, precision mold manufacturing enterprises to provide the best choice, improve the quality and efficiency of production, the first choice for mass production
VERTICAL MILLING CENTER VMC-S- SERIES
HIGH SPEED, HIGH EFFICIENCY, NO COUNTERWEIGHT BEST CHOICE FOR MASS PRODUCTION
Our Vmc-S series machine, using three-axis straight guide rail, with high speed displacement, high speed spindle, and using ATC automatic knife changing mechanism.
The three-axis adopts high precision ball wire rod, which can meet the requirements of high speed and high precision.
Focus on production: auto parts, electronic communication parts, aerospace parts, precision mold manufacturing enterprises to provide the best choice, improve the quality and efficiency of production, the first choice for mass production
S/Model | Unit | VMC-850S |
Machining Range | ||
X axis travel | mm | 800 |
Y axis travel | mm | 500 |
Z axis travel | mm | 500 |
Spindle nose to table | mm | 150-650 |
Spindle center to column | mm | 545 |
Workbench size | ||
Table Dimension | mm | 900x500 |
T-slot Dimension | mm | 3X18X130 |
Max Load | kg | 500 |
Spindle | ||
Taper | BT40 | |
Max Speed | rpm | 12000 |
Infeed System | ||
G00 fast infeed(Axis X/Y/Z) | m/min | 48/48/48 |
G01 cutting infeed | m/min | 1-10000 |
Tool Magazine | ||
Type | type | Disc |
Capacity | unit | 24 |
Accuracy | ||
positioning accuracy | ±0.005/300 | |
Repetitive accuracy | ±0.003/300 | |
Machine Dimension | ||
Length | mm | 2300 |
Width | mm | 2800 |
Height | mm | 2700 |
Weight | kgs | 4600 |
